4 Feet Veneer Peeling Machine

Table of Contents

• Product advantages

• Introduction to Machine Products

• Chipper debarker

• 4-feet 120m/min veneer peeling machine

• Adsorption stacker

Product advantages（Veneer peeling machine）

1. Maximizing raw material utilization (High Yield Rate):

This is the most crucial economic advantage, directly impacting the company's profits. The production line, using high-precision lasers or 3D scanning automatic centering systems, can accurately calculate the optimal cutting center for each log, minimizing the generation of core cylinders and "large wedge-shaped" waste materials to the greatest extent.

2. Significantly improving production efficiency and capacity:

The production line has achieved continuous automated operations throughout the entire process from log loading, rotary cutting to stack of veneers, resembling an industrial assembly line.

3. Remarkably ensuring product quality consistency and stability:

Through precise servo control systems and automated processes, the production line can guarantee high standards and consistency of products.

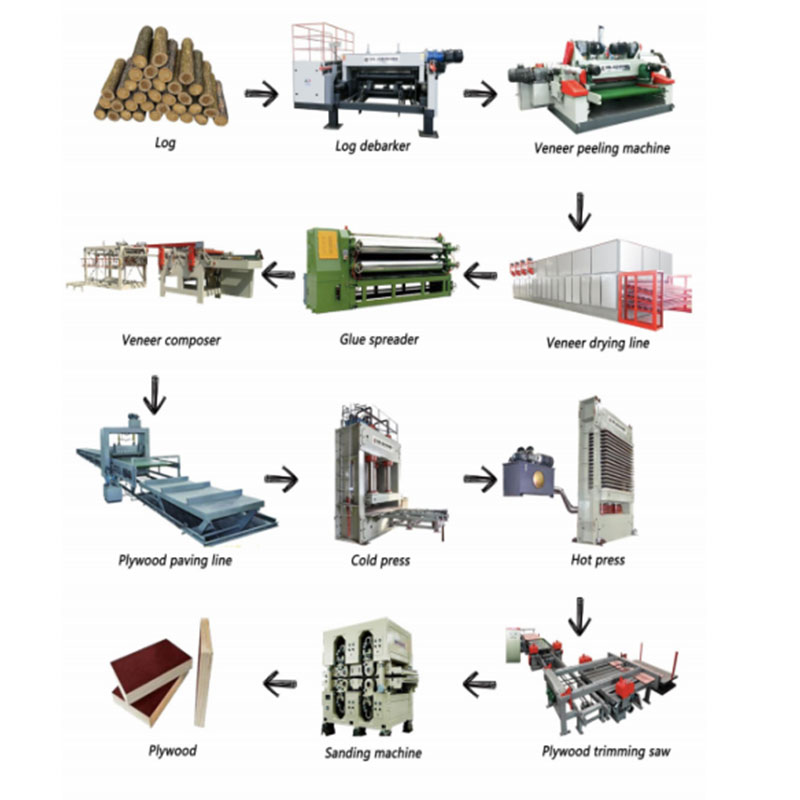

Introduction to Machine Products

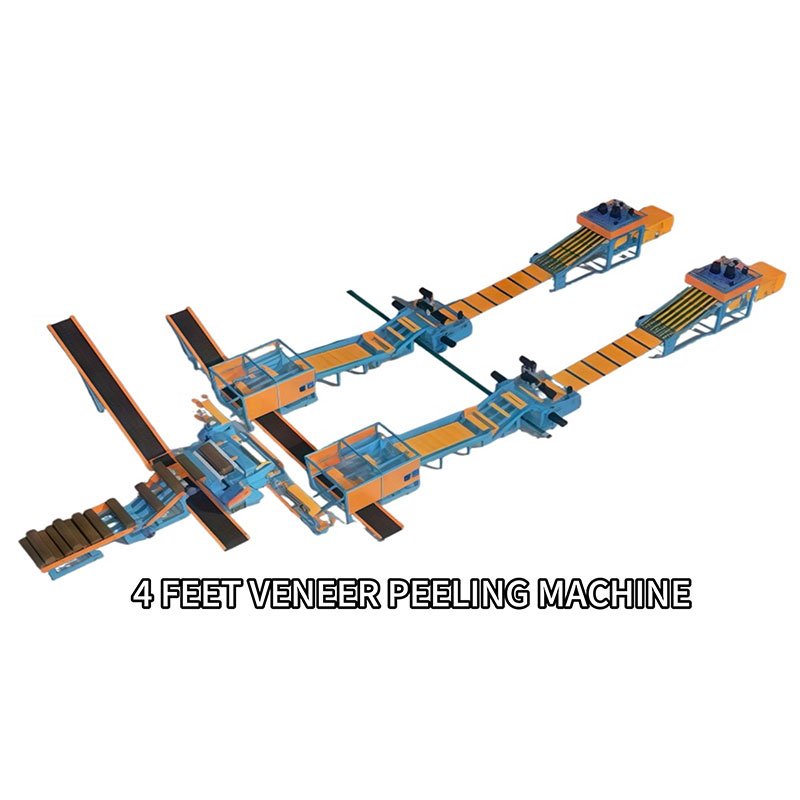

The 2.6-meter logs are transported to the storage rack using a forklift. The logs undergo head-to-head alignment and fixed-length cutting through an automatic feeding system (the cut-off wooden handles and wood chips are conveyed to the storage area for unified processing). After the cutting process, the logs are fed singly through an automatic feeding system and enter an automatic peeling and rounding machine for peeling and rounding (the waste from the rounding process is conveyed to the storage area for unified treatment). After rounding is completed, the logs are automatically divided into two parts for wood feeding, and then enter a rotary saw machine for single-board rotary cutting (4*2 feet single boards). The remaining wood cores from the rotary cutting process are conveyed to the storage area for unified packaging processing. After rotary cutting is completed, the single boards are conveyed to an automatic palletizing machine for palletizing (the pallet height is 1200mm).

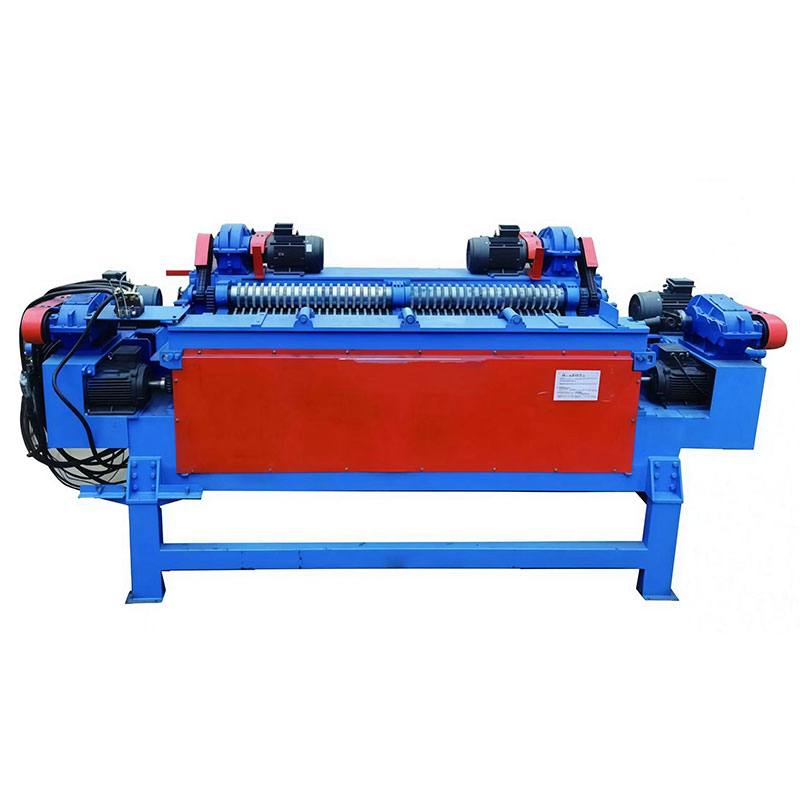

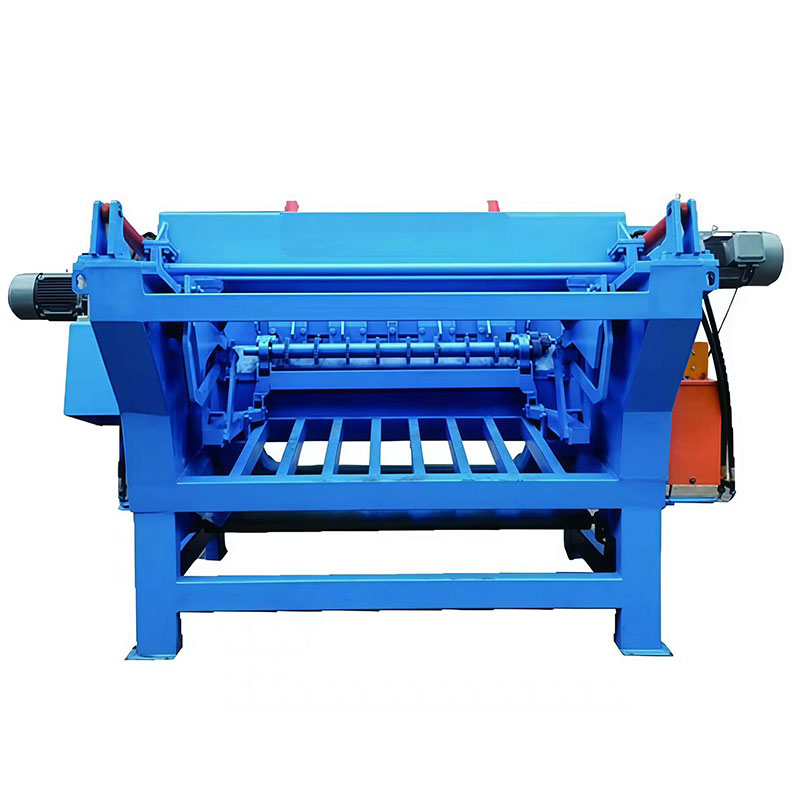

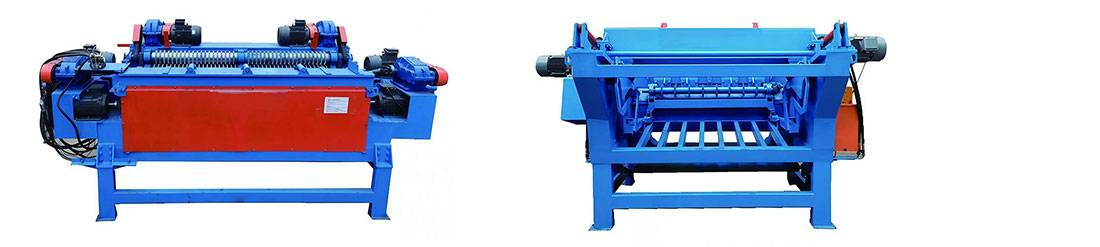

Chipper debarker

Main Function & Advantage

Fast rounding speed, can feed two veneer peeling machine at the same time.

Built-in two sets saw blade, can crush waste directly without any clogging

Logs waste all conveyed out, machine keep clear inside

With stand platform, great view

With plastic curtain, no splash

Advanced control system and core technology

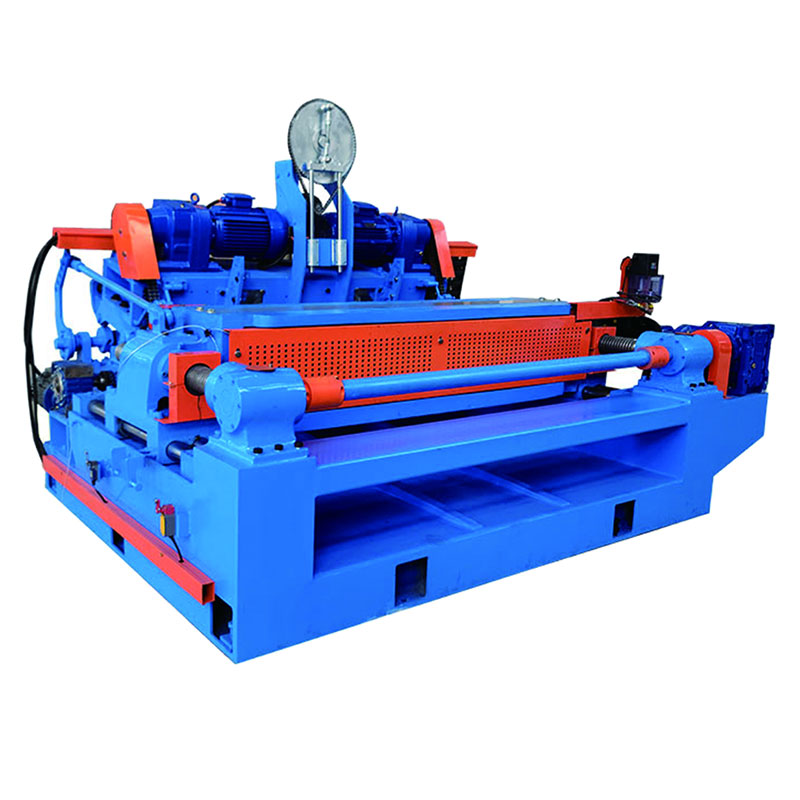

4-feet 120m/min veneer peeling machine

Parameters

Main Function & Advantage

Highest speed of the veneer peeling machine in China. Peeling speed can be fast as 120m/min.

Save power for 30% - 50%, Normally the running current only the 50% of the rated current.

Good quality of the veneer, smooth and evenness, thickness err plus and minus are small.

Stable the roller running speed, reduce the influence of the voltage fluctuate.

Automatic speed down when peeling end, reduce the shock of the machine, makes bearings and machine long durable.

Advanced control system and core technology.

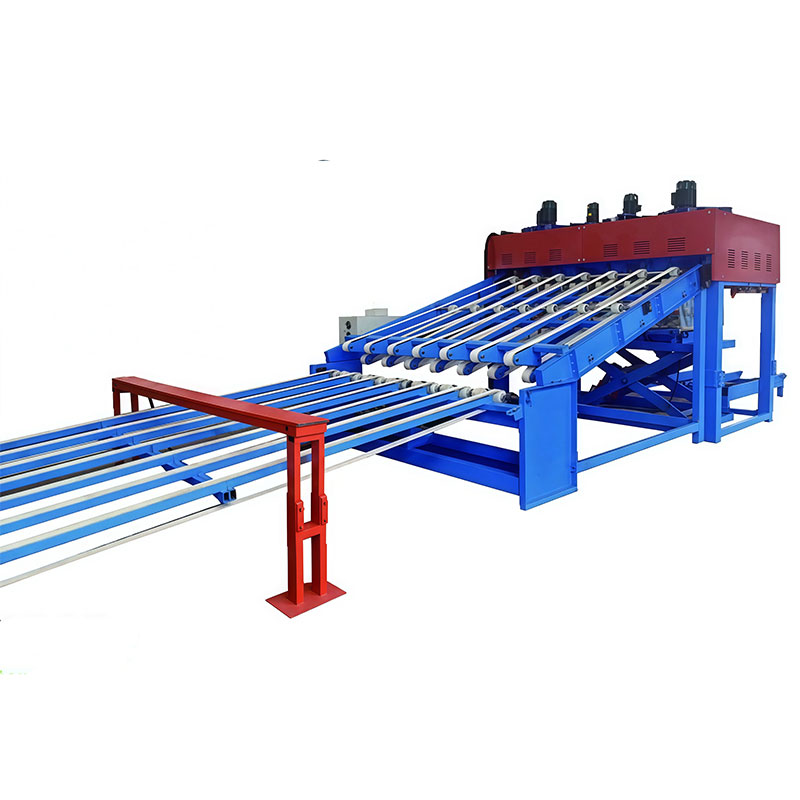

Adsorption stacker

Parameters

Main Function & Advantage

Easier operation, lower fault

Save manpower, improve working efficiency

Stack neatly and better transmission

Use brand servo motor and electrical sensors, response more sensitive.

With hydraulic lifting table, more steady and durable

Advanced control system and core technology
